A conveyor roller looks like a fairly simple component. It supports the belt, turns and keeps material moving. But anyone who's dealt with persistent roller failures knows there's a bit more to it than picking the right diameter and length.

Load, speed, bearing arrangement, material and working conditions all affect how a roller performs. Get the specification right and it should quietly get on with its job for a long time. Get it wrong and you're looking at failed bearings, excessive wear, noise and maintenance teams changing rollers far more often than anyone would like.

So where do you start?

Start With the Application

Before choosing a roller, look at what the conveyor actually has to do.

A roller working indoors in a relatively clean environment has an easier life than one spending every day in a quarry, mine or recycling plant. Dust gets everywhere. Water and abrasive material aren't particularly kind to bearings either.

Consider what's being conveyed, the belt width and speed, throughput, operating hours and the conveyor configuration itself.

It sounds obvious, but specifications have a habit of being carried from one machine to another simply because that's what we've always used. Sometimes that's fine. Sometimes it means the roller was never really right for the application in the first place.

Understand the Load

Load is one of the basics, but there's more involved than the weight of the material travelling along the belt.

Roller diameter, wall thickness, shaft dimensions, bearing capacity and roller spacing all play their part. A heavy-duty bulk handling conveyor will clearly place very different demands on its rollers from a lighter unit-handling system.

Going excessively heavy-duty isn't necessarily clever either. You're looking for enough strength and service life for the job without adding weight, rolling resistance and cost that the application doesn't need.

Think About Where It's Going to Work

Operating environment makes an enormous difference to roller life.

Dust and water are obvious problems, but abrasive material, chemicals and temperature also need considering. Put the conveyor outdoors and you've got weather and prolonged exposure to moisture to contend with as well.

This is where sealing really matters. Once fine dust or moisture starts getting into a bearing, roller life can fall away quickly.

Two rollers can look virtually identical sitting next to each other on a workshop floor and behave very differently after six months in service. What's inside them, and how well it's protected, matters.

Choose the Right Roller Material

Steel is still the obvious choice for many conveyor applications. It's strong, proven and works well across a huge range of equipment.

That doesn't mean it belongs everywhere.

HDPE and other polymer-based rollers make sense where weight, corrosion or noise are concerns. Other applications need particular materials, coatings or construction methods to deal with wear and harsh operating conditions.

Again, don't simply inherit the specification from the last conveyor.

Look at what the roller will be exposed to, how it's expected to perform and how long you expect it to stay there.

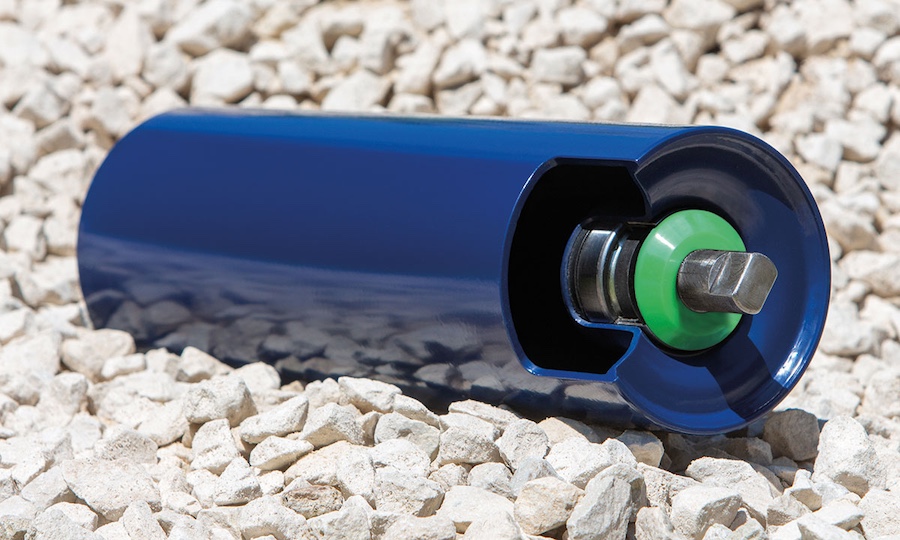

Bearings and Seals Matter More Than They Look

It's easy to concentrate on the tube because that's the bit of the roller you can see. Quite often, though, it's what's hidden inside that determines how long the roller lasts.

Bearing selection is critical. The bearing has to cope with the load and operating speed while continuing to rotate efficiently over the expected service life.

Then there's the sealing arrangement.

If the application is dusty, wet or dirty, keeping contamination away from those bearings becomes a big part of the specification. A cheap seal on an otherwise well-made roller can turn out to be a rather expensive saving.

That's why comparing conveyor rollers purely by external dimensions and price doesn't tell you very much. They might look interchangeable. Their performance in service can be anything but.

Look Beyond the Purchase Price

Cost matters. If you're building conveyors using hundreds or thousands of rollers, of course it does.

But saving a small amount on each roller loses its appeal if they start failing early.

There's the replacement roller to pay for, maintenance time, spare stock and the inconvenience of getting people out to change them. If a failure contributes to conveyor downtime, the cost of the roller itself can quickly become the least interesting number in the calculation.

Weight and ease of replacement matter too, particularly on installations where rollers are routinely changed as part of maintenance.

For OEMs, consistency is another big consideration. Once a roller has been designed, tested and qualified, you need the same thing next time.

Dimensions, materials, bearings, welding, assembly and inspection all need to remain controlled from batch to batch. A good prototype followed by inconsistent production isn't much use to anyone.

Get the Specification Right Early

There's no universal conveyor roller that works brilliantly everywhere.

The right choice comes from understanding the actual job: the load and speed, working environment, construction, bearings and seals, maintenance expectations and required service life.

For an OEM, it's much easier to deal with those questions during design and qualification than after machines are already working in the field.

And that's where specialist conveyor knowledge earns its keep. A roller shouldn't simply fit the conveyor. It needs to suit the job the conveyor is being asked to do.

Specialist Conveyor Expertise from ATG

ATG has its own dedicated conveyor division, ATG Conveyor Components, specialising in conveyor rollers, idlers and associated components for bulk and unit material handling applications.

That specialist conveyor knowledge sits alongside the wider ATG Group's engineering, quality and supply-chain capabilities. We can work with customers on the initial specification and component qualification, then manage manufacture, inspection and ongoing supply.

The objective is straightforward: supply the right component, consistently, for the equipment and environment it's going to work in.

Choosing rollers for a new conveyor or wondering whether your existing specification could be better? Talk to the ATG Conveyor Components team about the application and what you need the roller to do. Or get in touch with the team at ATG by filling out the Contact Form.
